Section 7.9 Diagram Examples

This section provides reference diagrams for the sentence structures introduced in this chapter. Use these as models when learning to read, interpret, and construct tree diagrams.

🔗

Subsection 7.9.1 Basic Sentence Structure

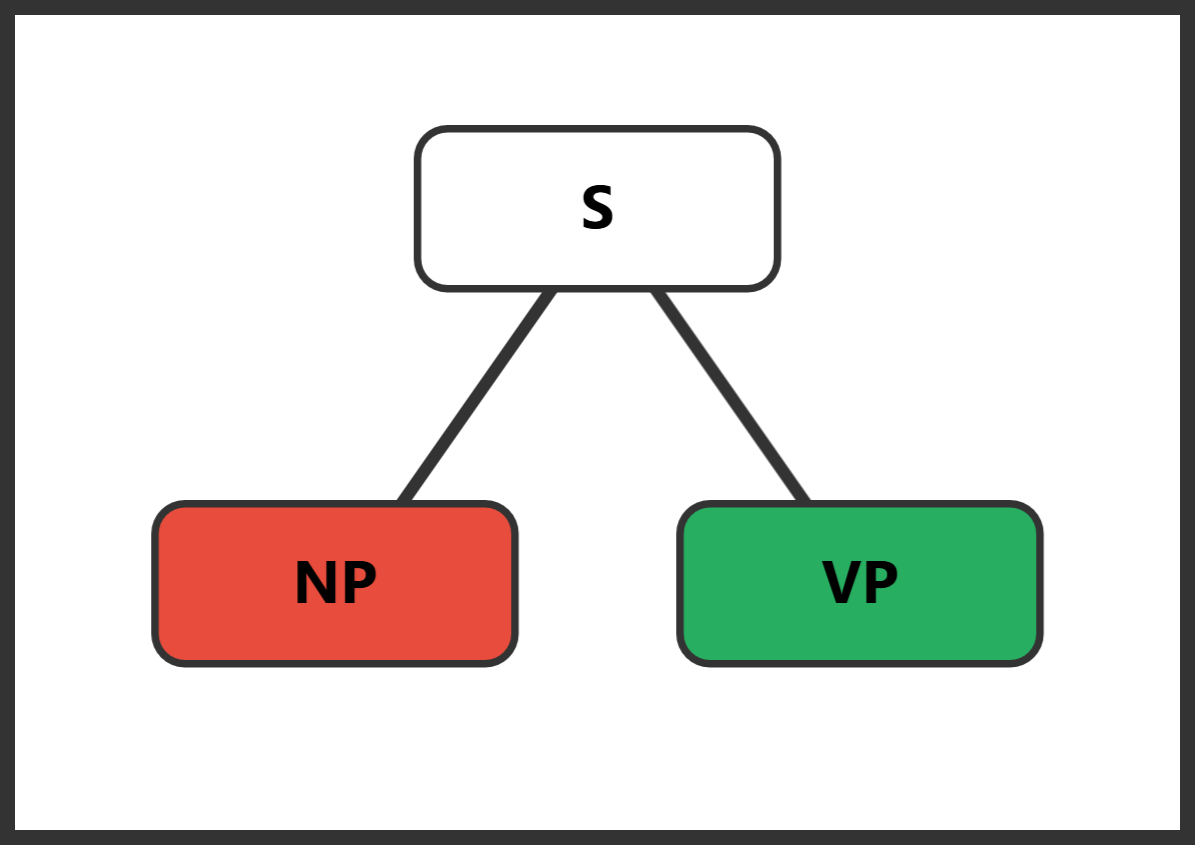

7.9.1 A: Abstract S → NP + VP template.

🔗

Abstract syntax tree showing S branching to NP and VP

[S [NP] [VP]]

🔗

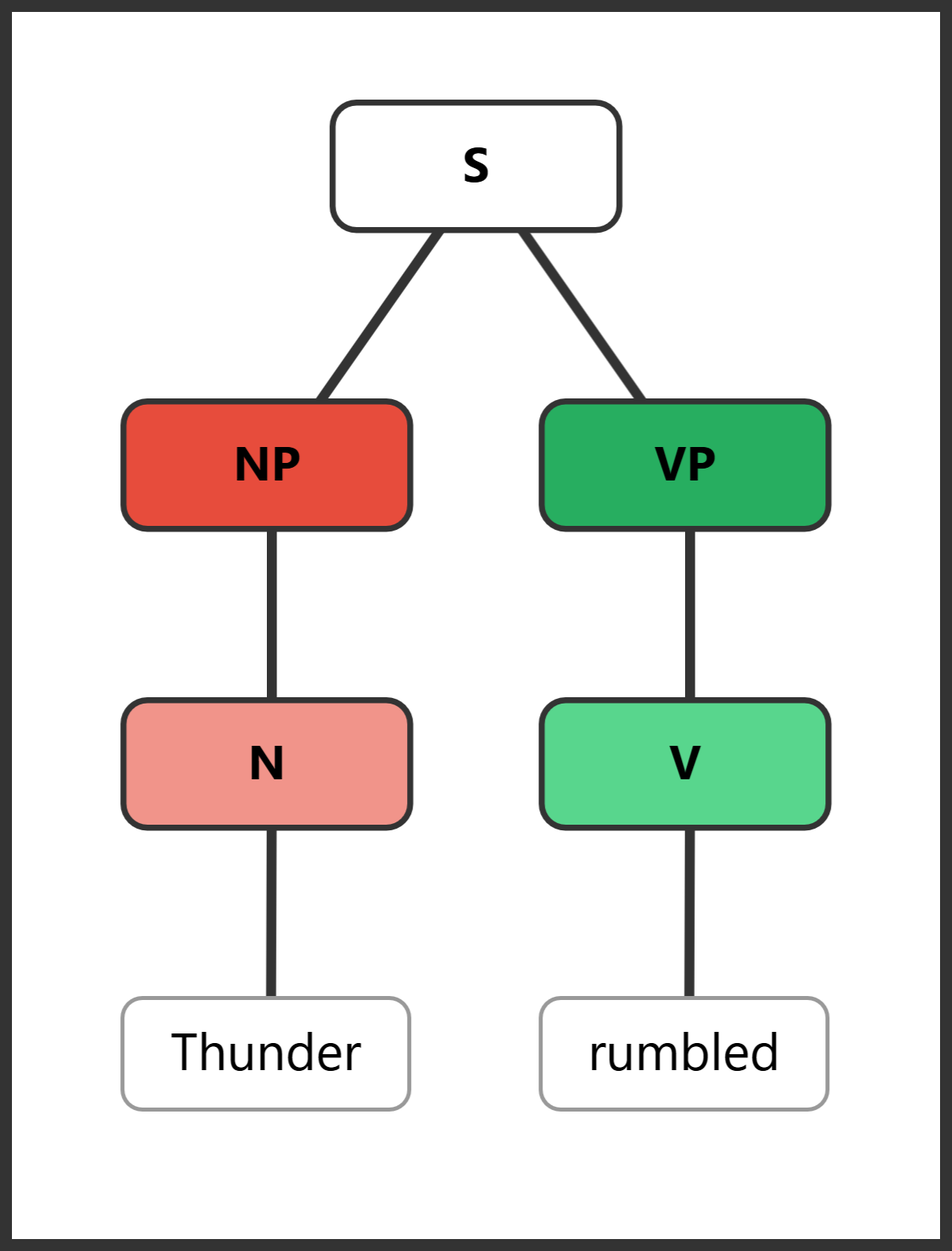

7.9.1 B: Simplest sentence (bare N + V).

🔗

Multi-level labeling table for "Thunder rumbled"

Syntax tree for "Thunder rumbled" showing S with NP containing N and VP containing V

[S [NP [N Thunder]] [VP [V rumbled]]]

🔗

7.9.1 C: Sentence with DET.

🔗

Multi-level labeling table for "The dog barked"

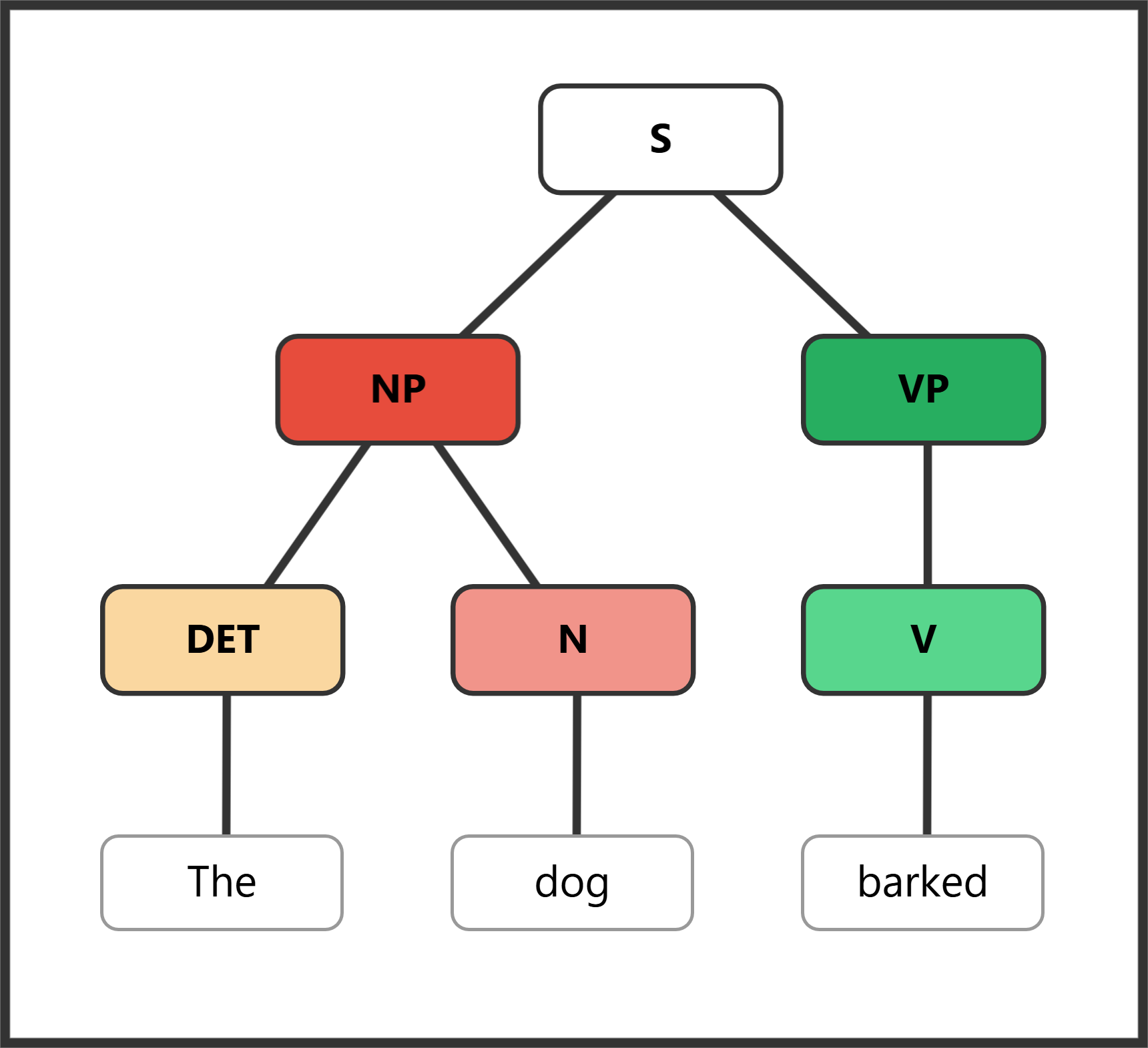

Syntax tree for "The dog barked" showing NP with DET and N, VP with V

[S [NP [DET The] [N dog]] [VP [V barked]]]

🔗

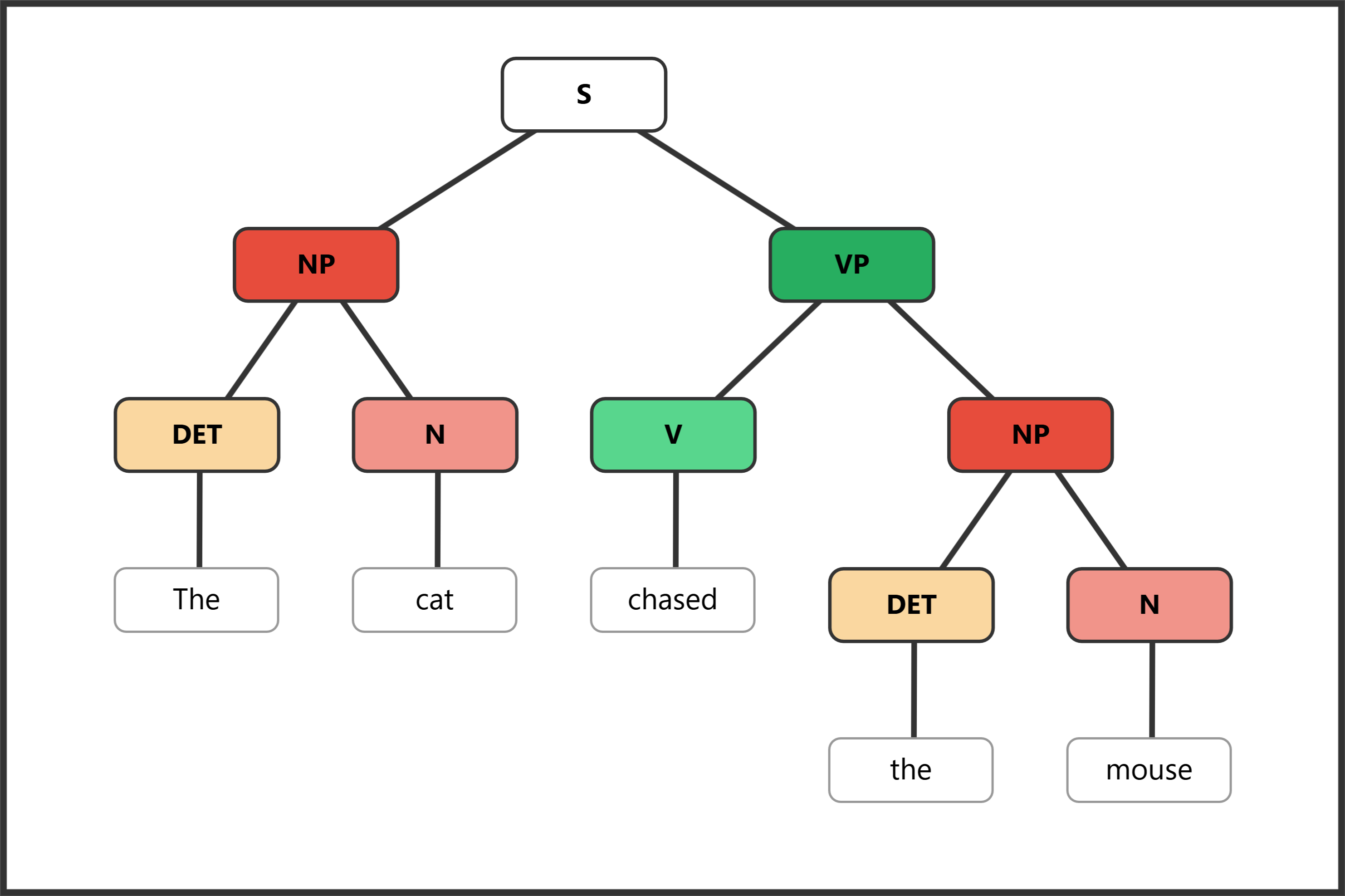

7.9.1 D: Transitive sentence.

🔗

Multi-level labeling table for "The cat chased the mouse"

Syntax tree for "The cat chased the mouse" showing transitive structure

[S [NP [DET The] [N cat]] [VP [V chased] [NP [DET the] [N mouse]]]]

🔗

Subsection 7.9.2 Sentences with Modifiers

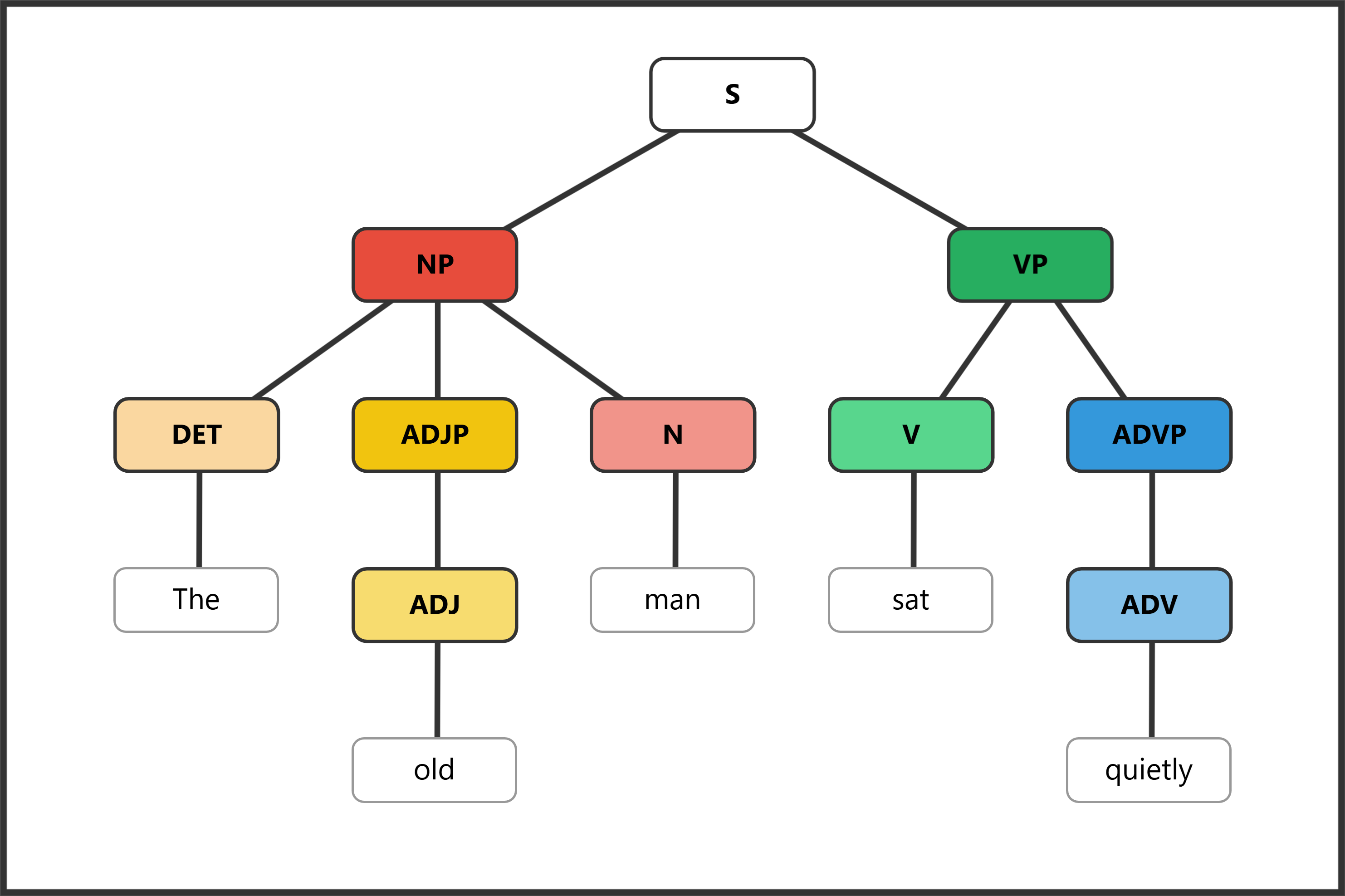

7.9.2 A: Sentence with ADJ and ADV modifiers.

🔗

Multi-level labeling table for "The old man sat quietly"

Syntax tree for "The old man sat quietly" with ADJP and ADVP modifiers

[S [NP [DET The] [ADJP [ADJ old]] [N man]] [VP [V sat] [ADVP [ADV quietly]]]]

🔗

7.9.2 B: Complex sentence with PP modifier.

🔗

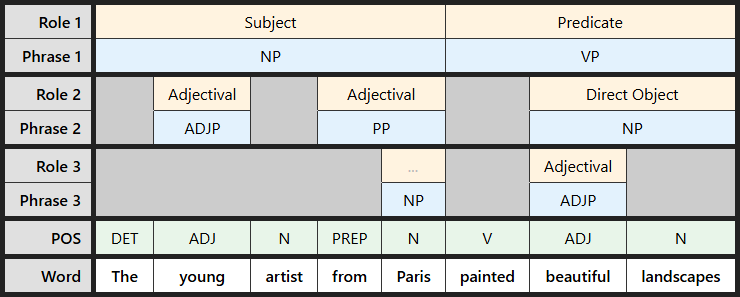

Multi-level labeling table for "The young artist from Paris painted beautiful landscapes"

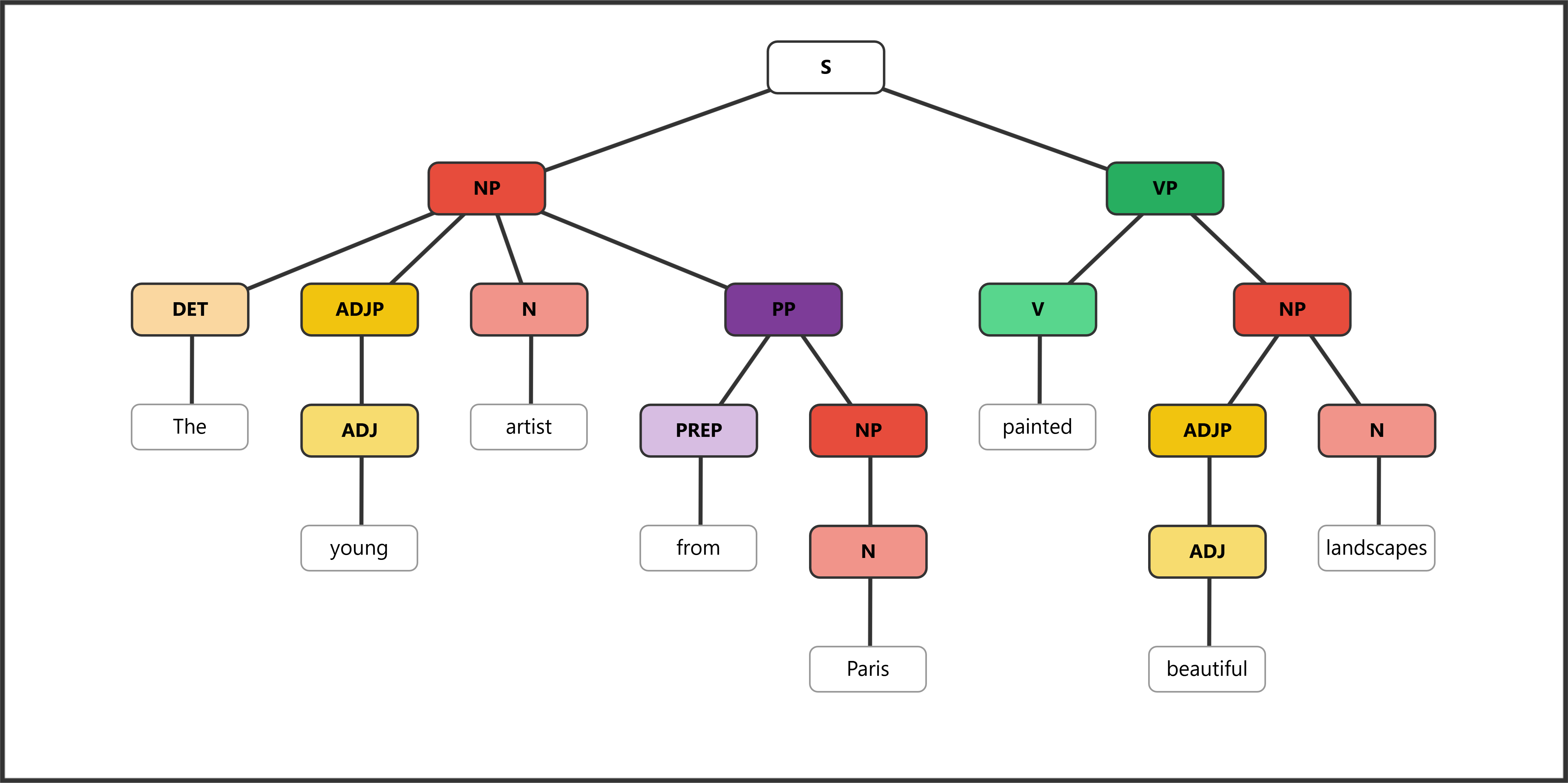

Syntax tree for "The young artist from Paris painted beautiful landscapes"

[S [NP [DET The] [ADJP [ADJ young]] [N artist] [PP [PREP from] [NP [N Paris]]]] [VP [V painted] [NP [ADJP [ADJ beautiful]] [N landscapes]]]]

🔗

Subsection 7.9.3 Structural Ambiguity

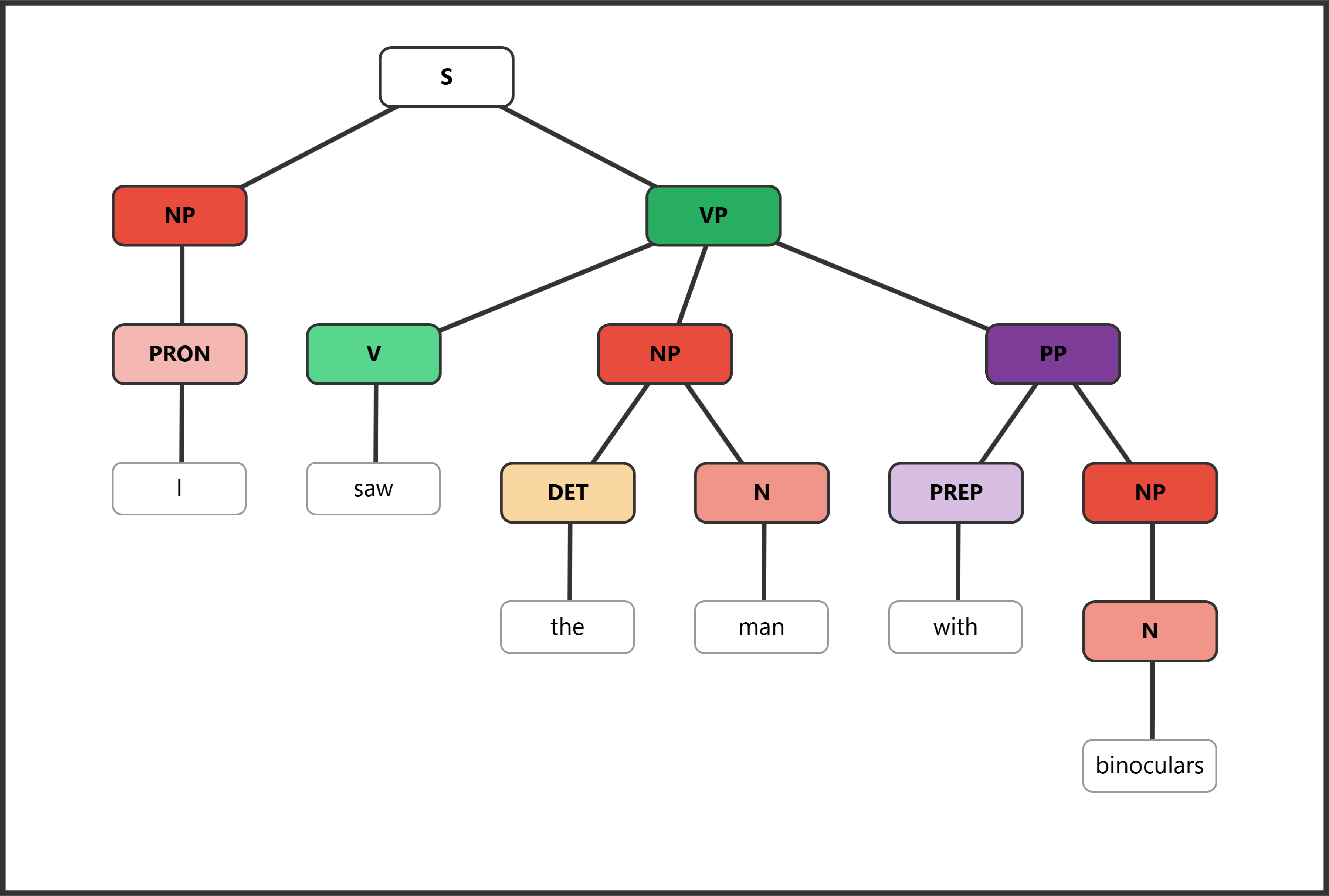

7.9.3 A: VP attachment (PP modifies VP).

🔗

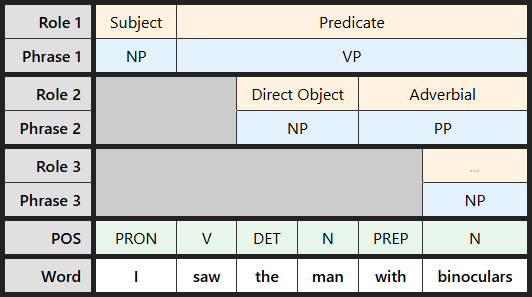

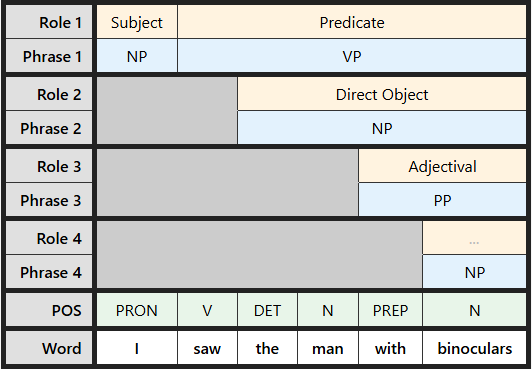

Multi-level labeling table for "saw the man with binoculars"

Syntax tree for "I saw the man with binoculars" with PP attached to VP

[S [NP [PRON I]] [VP [V saw] [NP [DET the] [N man]] [PP [PREP with] [NP [N binoculars]]]]]

🔗

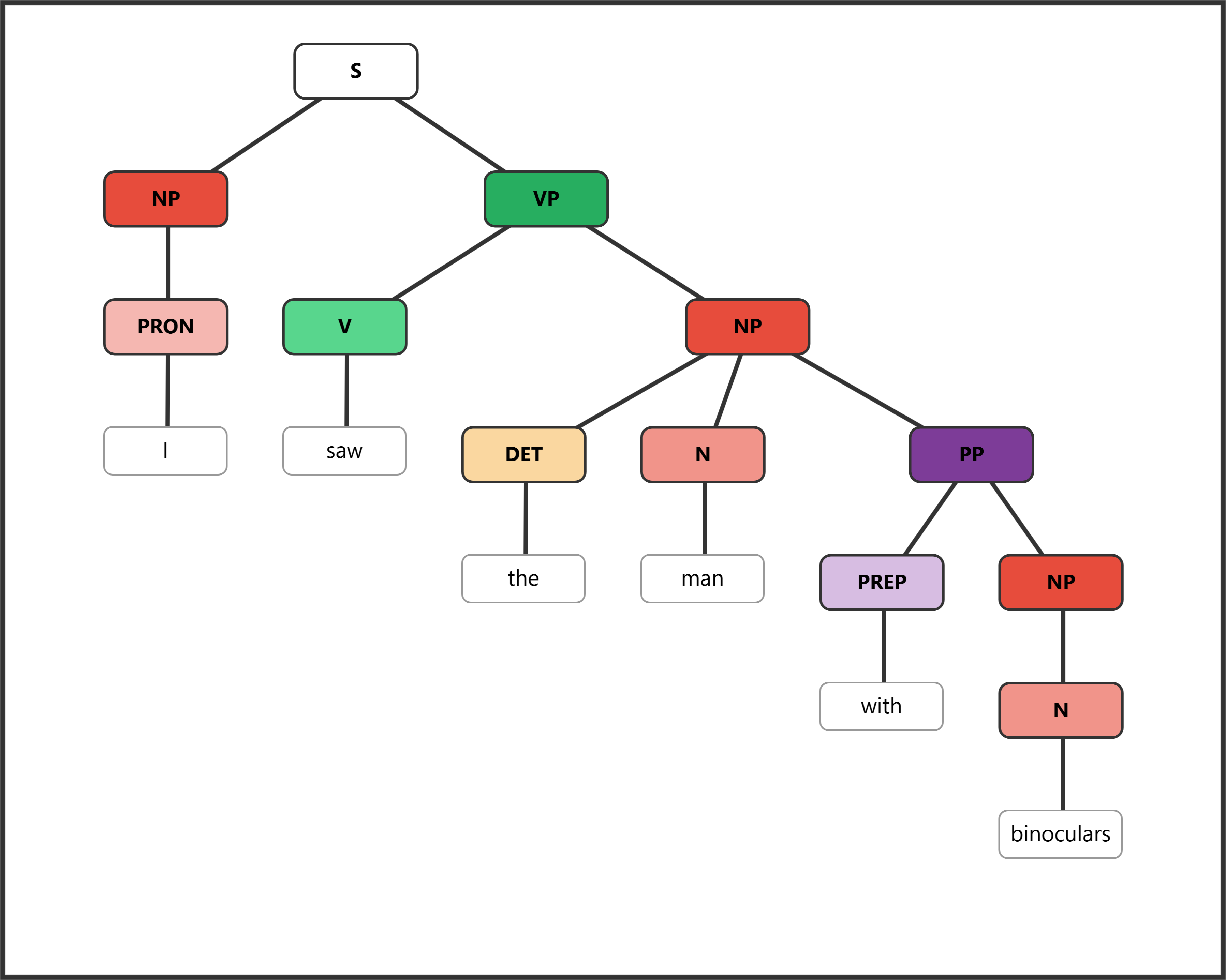

7.9.3 B: NP attachment (PP modifies NP).

🔗

Syntax tree for "I saw the man with binoculars" with PP attached to NP

[S [NP [PRON I]] [VP [V saw] [NP [DET the] [N man] [PP [PREP with] [NP [N binoculars]]]]]]

🔗
